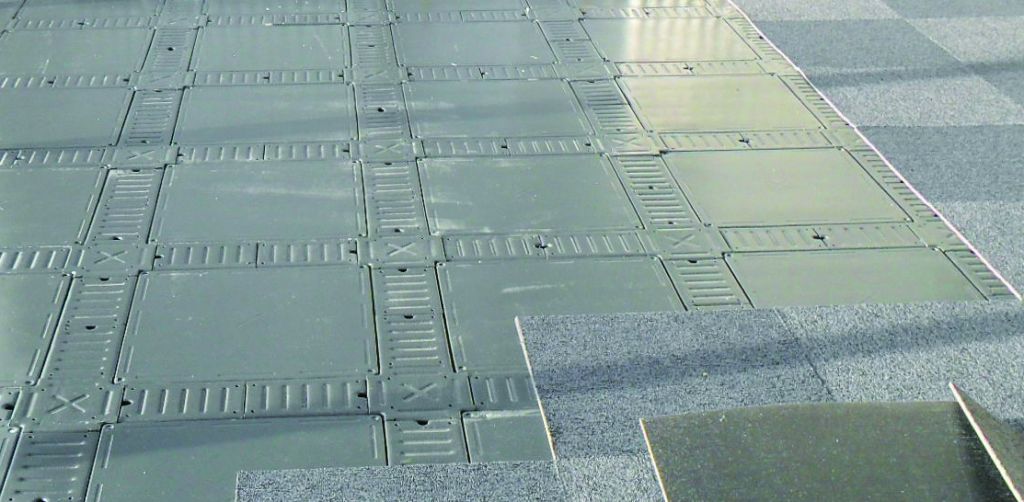

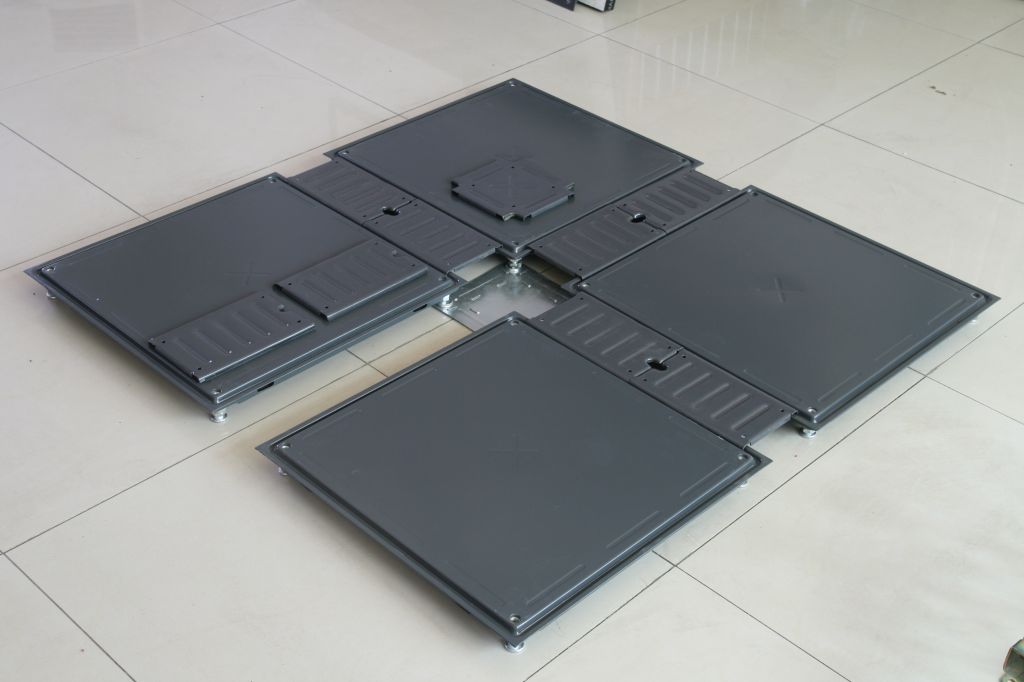

Full steel wire slot network floor
Product features:

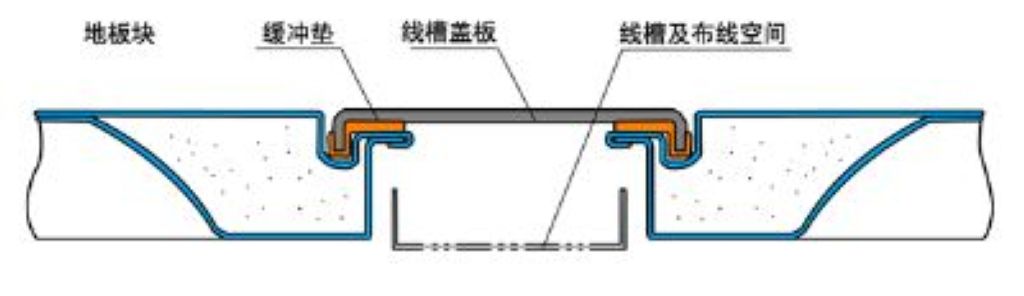

The steel plate and cement structure;with the better bearing capacity and anti-impact capacity;the surface with the static spraying;waterproof;fire-proof;dustproof;antisepsis;and the wire slot naturally formed between main boards.
Scope of use:
The office building,telecommunication,communication and so on..the surface layer needs to be added with such surface layer material as the carpet.
Product parameters:
|
Size
|
Specifications
|
集中載荷（撓度=2mm） |
均布載荷（N/㎡） Uniformly distributed load
|
極限集中載荷（N）Limit of concentrated load |
滾動載荷（N）
Uniformly distributed load
|
|||
|
國際標準 |
國家標準 |
|
ib |
N |
Kg |
|
|
|
|
FS700 |
CQ |
地板規格：500*500*25mm |
700 |
1960 |
200 |
9720 |
5880 |
980 |
|
FS800 |
Q |
|
800 |
2950 |
300 |
12500 |
8850 |
2255 |
|
FS1000 |
B |
|
1000 |
4450 |
450 |
23000 |
13350 |
3560 |
|
FS1250 |
Z |
|
1250 |
5560 |
560 |
33000 |
16680 |
4450 |
